Submerged Scraper conveyor

Equipment Introduction

• The largest manufacture company of Power Plant in Indonesia
• Provide the best solution for ash handling system
  design and retrofit：80t/h
• Max. design capability is 80t/h
• Max. design length is 74m (1000MW unit)

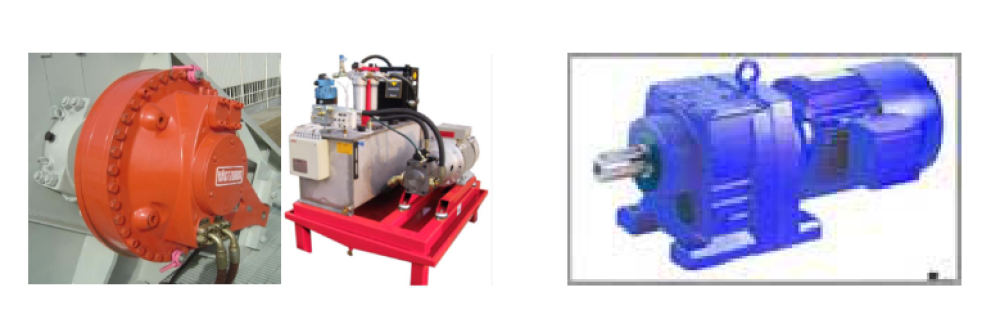

+ Strong driving mechanism

Two types of driving method are adopted as below:

+ High wearable round chain

Chains Brand: RUD, HEKO, CICSA

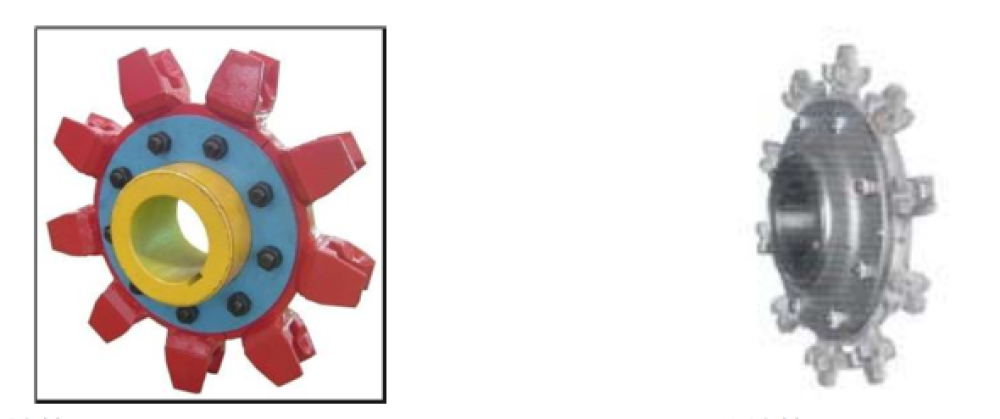

+ Dragging sprocket

Two types of sprocket are normally adopted as below:

+ Flight attachment

•SSR attachment for convex sprocket
•Fork attachment for concave sprocket

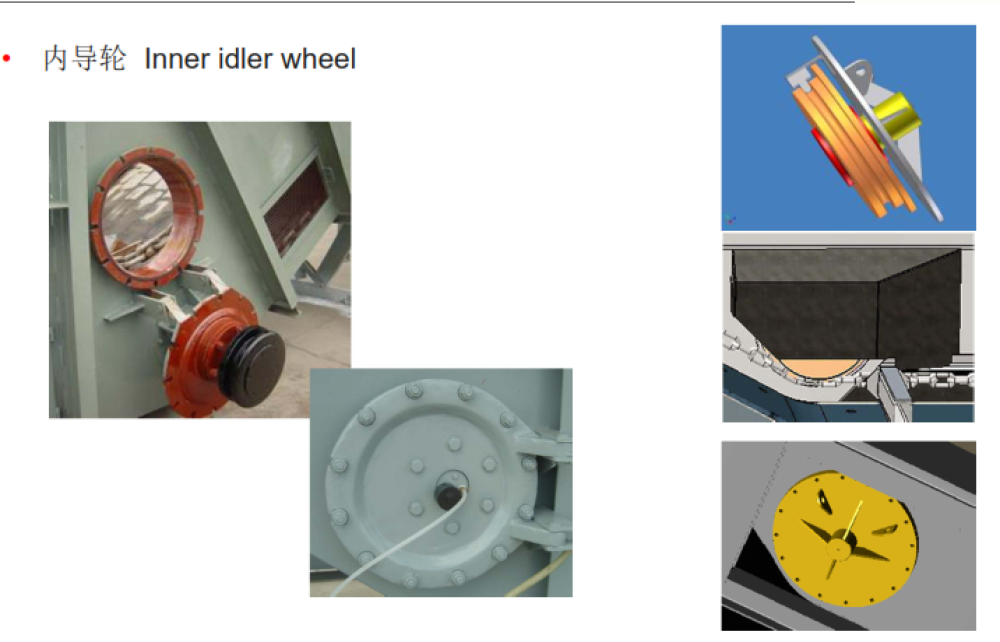

+ Inner idler wheel

+ Take-up unit

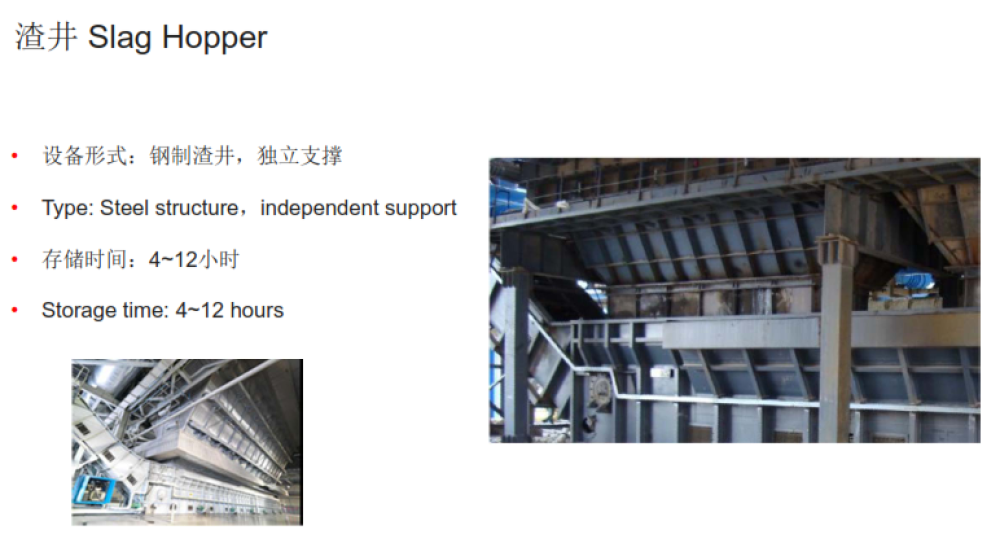

+ Slag Hopper

•Type: Steel structure，independent support

•Storagetime: 4~12 hours

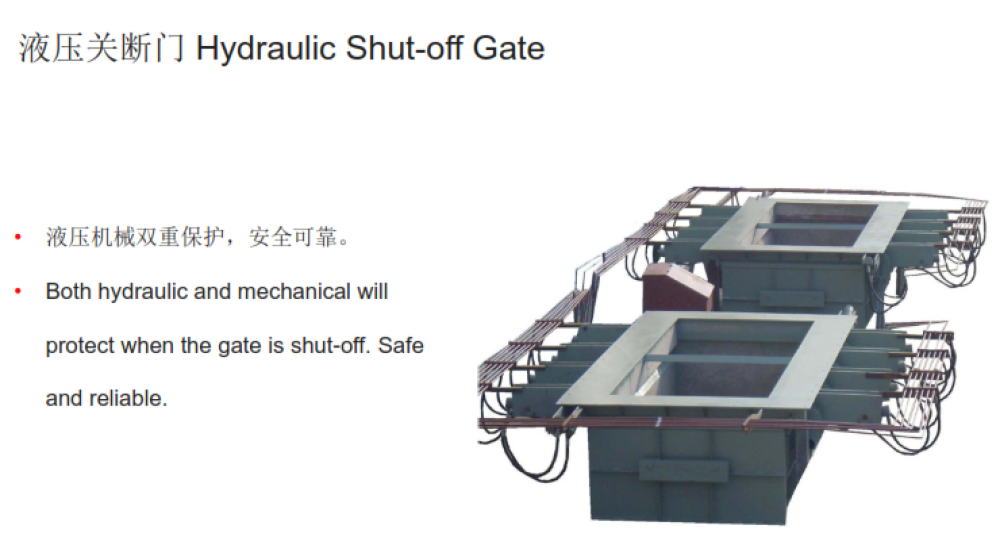

+ Hydraulic Shut-off Gate

Both hydraulic and mechanical will protect when the gate is shut-off. Safe and reliable.

+ Slag Bin

• Type: Steel slag bin ：10~500m3

• Effective volume: 10~500m3
• Decanting function

+ Single-Roller Slag Crusher

•Type: DGS1230, DGS830

•Max. design capability is 80t/h ( Wet Ash)

•Input particle size: ≤250x250mm

•Output particle size: ≤30x30mm
